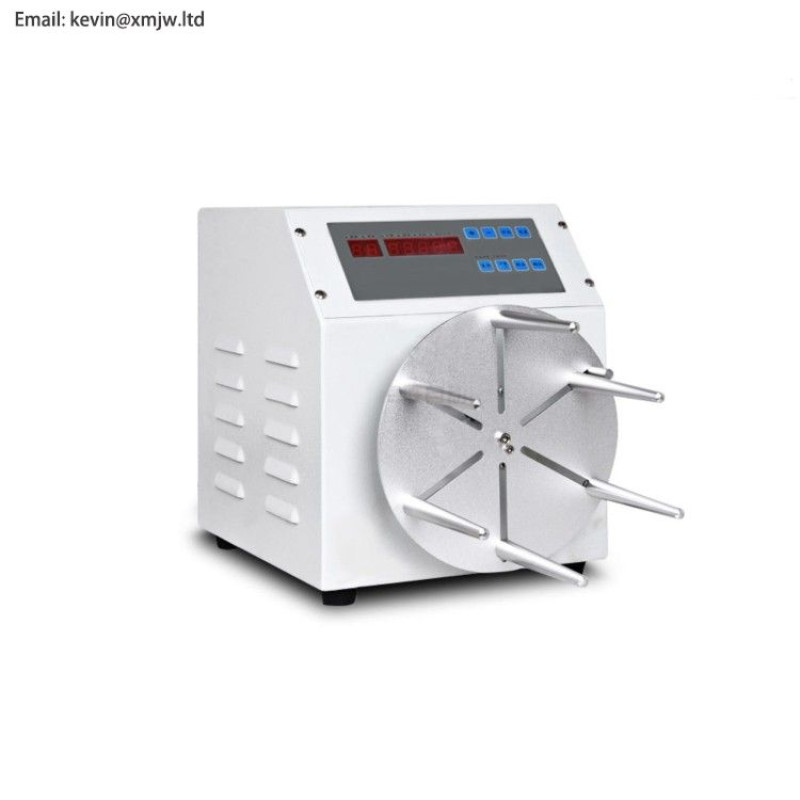

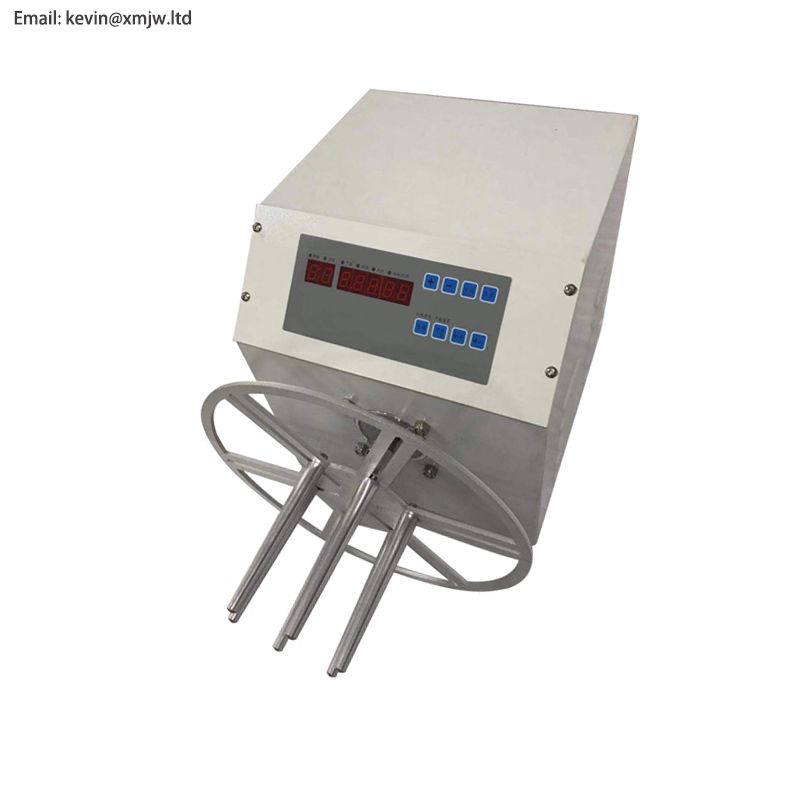

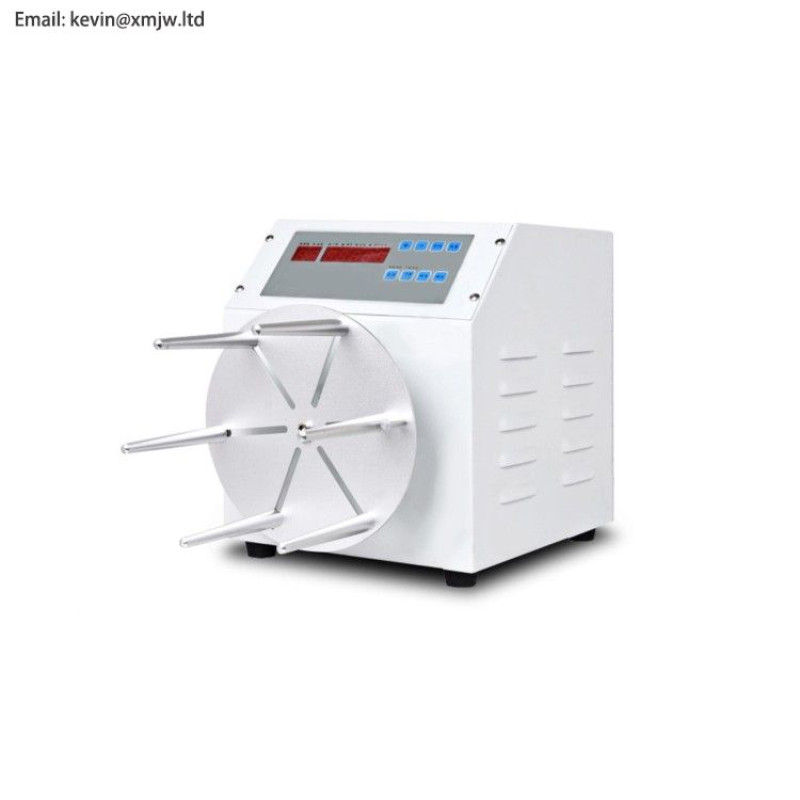

Semi automatic cable wire winding machine X-WM01A , USB cable winding machine, medical cable coiling machine
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230808447234
- Availability: 500
Product Description

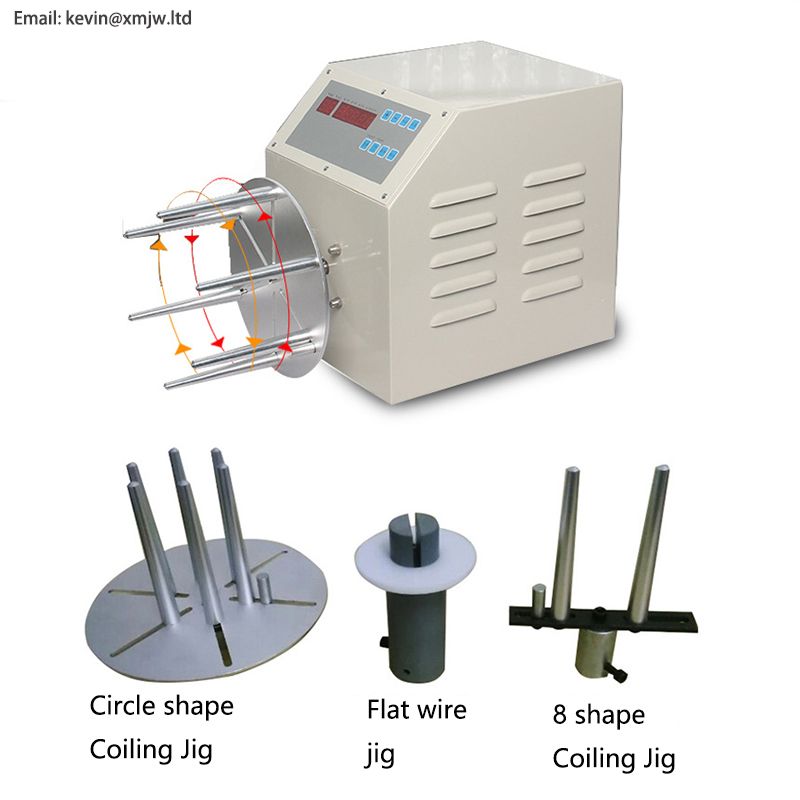

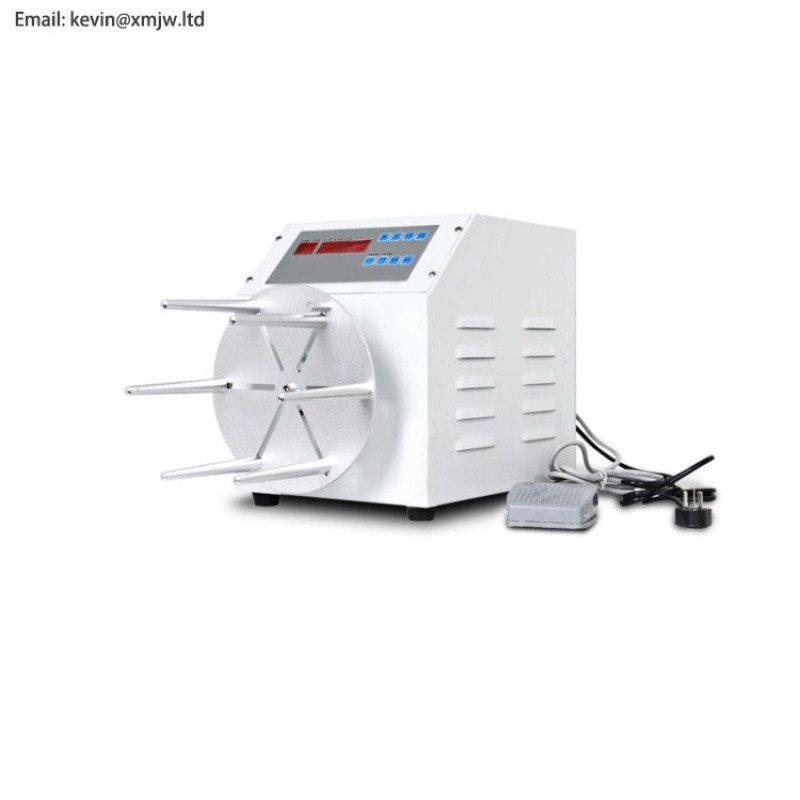

X-WM01 Series Automatic Cable& wire coil winding machine is suitable for winding all kinds of cable&wires, especially used for AC/DC power cords, USB data cable, DC cable, HDMI cable, wire harness cables. Putting cable&wire on the jig, stepping on the foot pedal, machine will automatically wind the wires; Once reaching the preset coil number, it immediately stops. The machine is really simple operation, stable performance , and reasonable price. It will reduce labor, the output is three to four times than that of the traditional manual production. It greatly reduces the production cost, actually is the best choice for the power cord plug production enterprise.
Specification
Model | X-WM01A | X-WM01B | X-WM01C | ||
Voltage | 220V/50HZ | 220V/50HZ | 220V/50HZ | ||
Power | 120W | 400W | 750W | ||
Coil Diameter | 10-20mm | 10-20mm | 10-30mm | ||
Wire&cable Size | OD 0.1-10mm | OD 0.1-10mm | OD 0.1-12mm | ||
Winding Cycles | 1-9999 times | 1-9999 times | 1-9999 times | ||
Winding Length | Adjustable | Adjustable | Adjustable | ||
Winding speed | 1-99 adjustable | 1-99 adjustable | 1-99 adjustable | ||

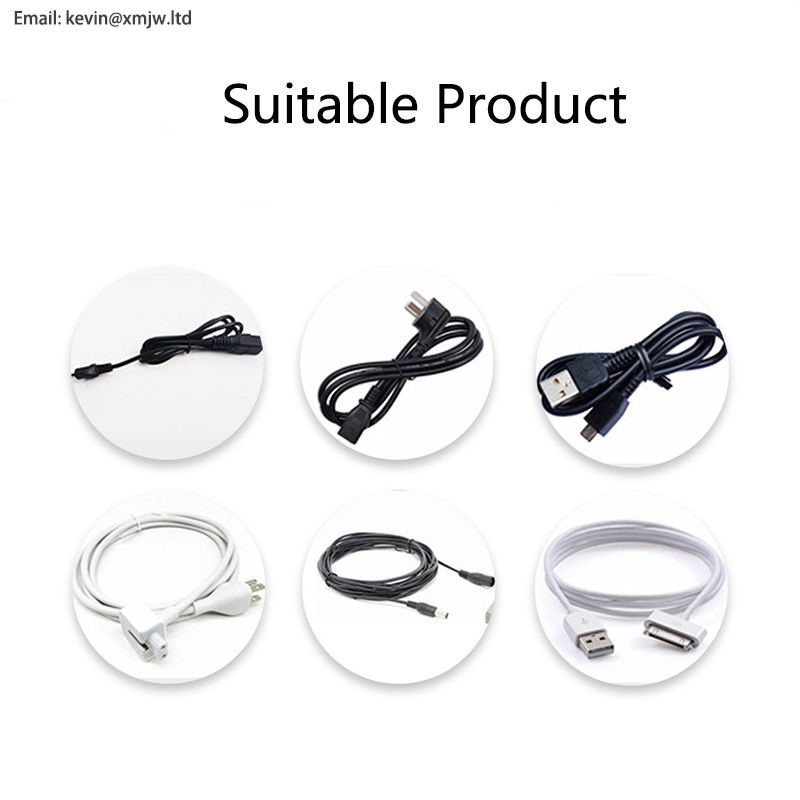

Suitable wire | AC/DC power cords, USB data cable, DC cable, wire harness cables | ||||
Dimension | 260*290*310mm | 260*290*310mm | 280*300*310mm | ||
Weight | 12KG | 17kg | 19KG | ||
| Brand Name | X cable Tech |
| Coil Diameter | 10-20mm |
| Dimension | 260*290*310mm |
| Function | Cable Winding |
| Model Number | X-WM01A |
| Place of Origin | Guangdong;China |
| Power Rate | 120W |
| Power supply | AC220V/110V 50/60HZ |
| Suitable wire | power cords;USB data cable;DC cable;wire harness cables |
| Usage | WINDING |
| Weight | 12kg |
| Winding Cycles | 1-9999cycles |
| Wire&cable Size | OD0.1-10mm |
